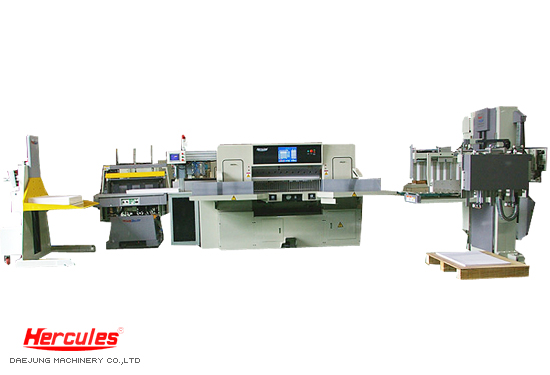

Rear Loading Cutting System
Product Image
Rear Loading Cutting System
Rear Loading Cutting System

Product Explanation
Specification DL-1160 DL-1370 DL-1580 DL-1900 DL-2300
Machine length 7400mm 8400mm 9310mm 9570mm 10140mm
Machine depth 5125mm 5600mm 5930mm 6130mm 6530mm
Machine height 2150mm 2280mm 2280mm 2280mm 2280mm
Rear loading opening(max.) 900mm 1050mm 1250mm 1550mm 1800mm
Air table size 860 X 1280mm 1000 X 1490mm 1200 X 1780mm 1500 X 2100mm 1750 X 2500mm
Chucking system stroke 175mm 175mm 175mm 175mm 175mm
Total power required 9.8kw 9.8kw 9.8kw 9.8kw 9.8kw
Net weight 8400kg 8900kg 9900kg 11900kg 12900kg
